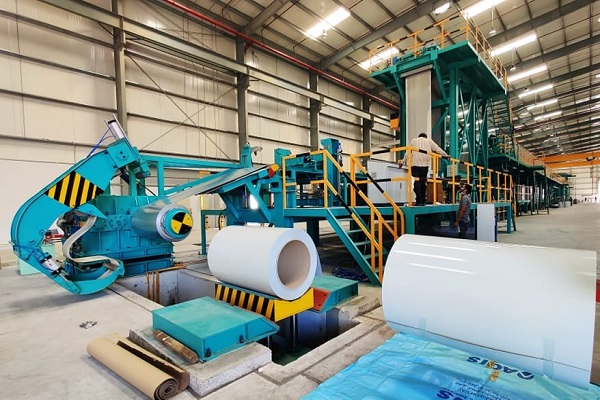

Color Coating Line

Color Coating Line

Key Components and Steps in a Color Coating Line:

  1. Uncoiling:

    • The process begins with uncoiling the metal substrate from large coils. These coils are fed into the line for processing.
  2. Cleaning and Pretreatment:

    • The metal surface is cleaned to remove dirt, oil, and other contaminants. This is followed by a chemical pretreatment to improve the adhesion of the coating.
  3. Coating Application:

    • The coating process typically involves the application of a primer and top coat. This can be done through various methods such as roller coating, spray coating, or dip coating.
  4. Curing (Baking) Oven:

    • After the coating is applied, the metal passes through a curing oven where it is heated to a specific temperature. This process hardens the coating and ensures durability.
  5. Cooling:

    • After curing, the coated metal is cooled down to solidify the coating before further processing.
  6. Recoiling:

    • Finally, the coated metal is recoiled into large rolls for easy handling and transportation.

A Color Coating Line (CCL) is a processing line used in the manufacturing industry, primarily for applying a protective and decorative layer of color coating to metal substrates, such as steel or aluminum. This process is widely used in the production of pre-painted metal products, often referred to as "color-coated" or "pre-painted" metals, which are used in various applications including construction, automotive, appliances, and more.
