4hi Mill

A 4Hi mill (Four-High mill) is a type of rolling mill that consists of four rolls: two smaller working rolls positioned between two larger backup rolls. This configuration is designed to achieve higher precision in the rolling process, which involves reducing the thickness of metal sheets or strips by compressing them between the rolls. The 4Hi mill is commonly used in the metalworking industry for cold rolling processes, producing thin, high-quality metal products.

Key Components of a 4Hi Mill:

Working Rolls: The two smaller rolls, typically made from high-strength materials, directly contact the metal strip or sheet. They are responsible for the actual rolling process and for reducing the material's thickness.
Backup Rolls: The larger rolls provide support to the working rolls, preventing them from bending under the high rolling forces. This ensures that the thickness reduction is uniform and precise across the width of the material.

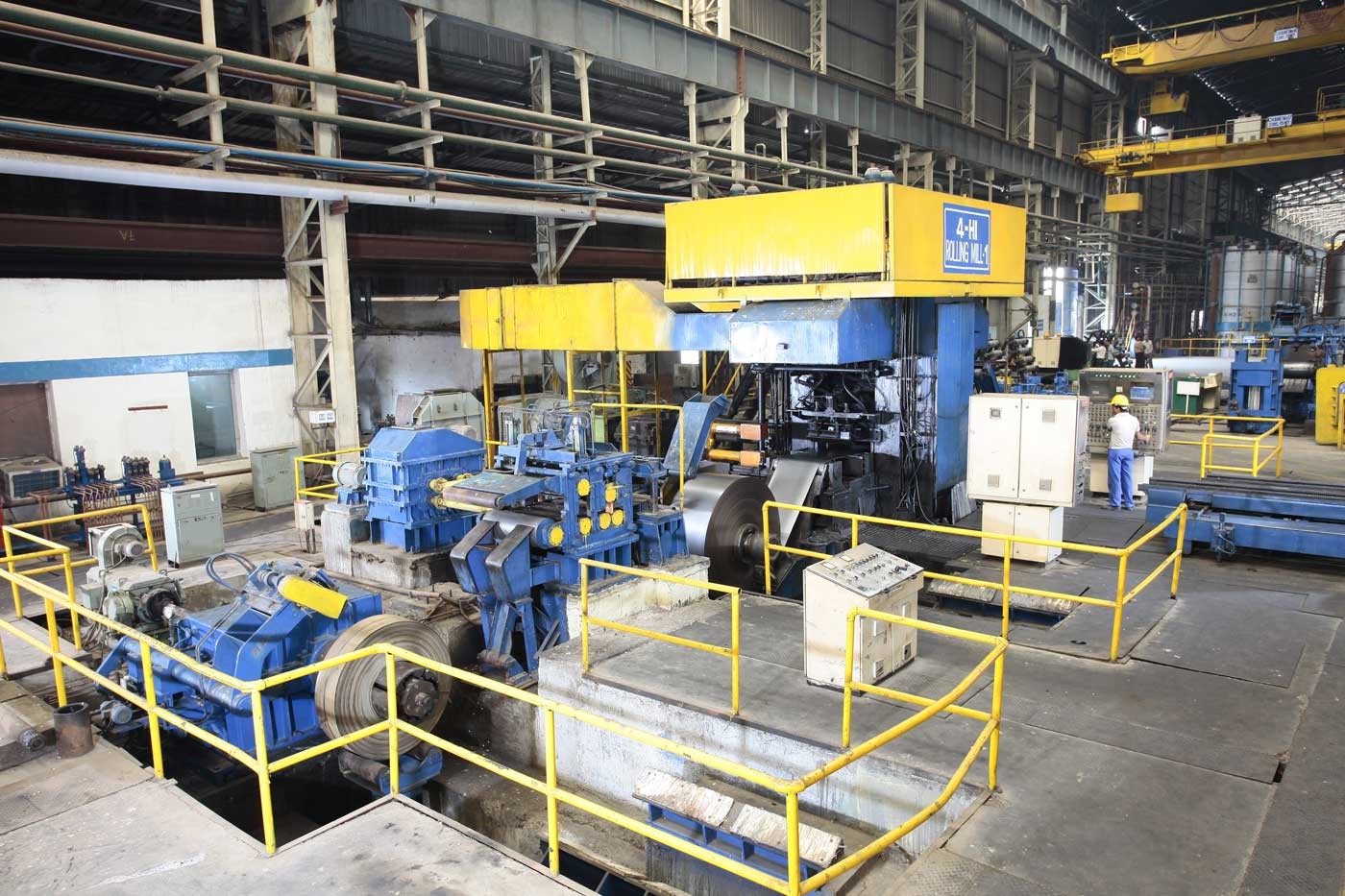

4Hi Mill

Advantages of a 4Hi Mill:

High Precision: The backup rolls help maintain the shape and stability of the working rolls, allowing for the production of extremely thin sheets with tight tolerances.
Versatility: 4Hi mills can be used to roll a wide range of metals, including steel, aluminum, copper, and more.
Surface Quality: The configuration allows for excellent control over surface finish and flatness, making it ideal for producing materials used in applications where surface quality is critical, such as automotive body panels and electronic components.

Applications:

Cold Rolling: 4Hi mills are primarily used for cold rolling processes, where metal is rolled at room temperature. This enhances the strength and hardness of the material while ensuring a smooth surface finish.
Metal Strips and Sheets: These mills are used to produce thin metal sheets and strips for various industries, including automotive, aerospace, construction, and electronics.

Operation:

The metal strip is fed between the working rolls, which compress it to the desired thickness. The backup rolls provide the necessary support to ensure consistent pressure and prevent deflection of the working rolls. The process can be repeated in multiple passes to achieve the final thickness. In summary, the 4Hi mill is an essential piece of equipment in the metalworking industry, offering high precision and versatility in the production of thin, high-quality metal sheets and strips. Its ability to produce materials with excellent surface quality makes it indispensable for industries requiring top-grade metal products.
