Featured Products

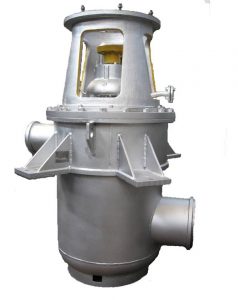

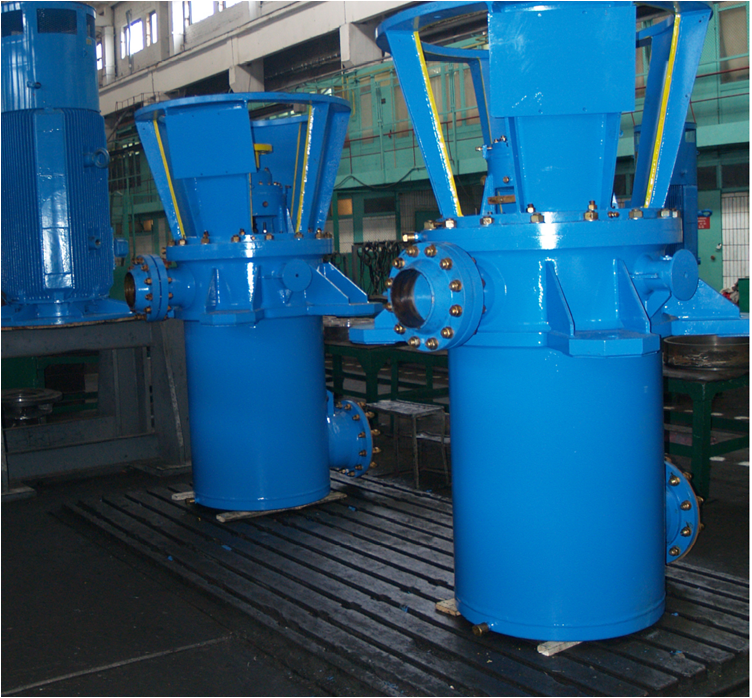

Condensate Extraction Pumps For Thermal Power Plants
CONDENSATE EXTRACTION PUMPS for TPP range 300..660 MW
| Related Capacity | 700 – 2200 m3/h |
| Head at Rated Capacity | 70 – 300 m |
| Rotational Speed | 1000 – 1500 rpm |
| Temprational Speed Of handled Water | up to 125ºС |
| NPSHR | from 0 m |
Enquire Now
Description of pumps: КсВ 500-85-1; КсВ 500-220-1; КсВ 200-220-1

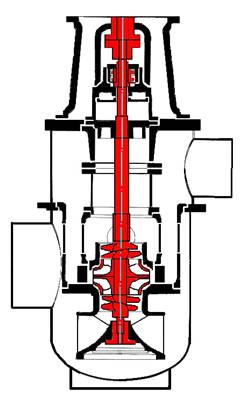

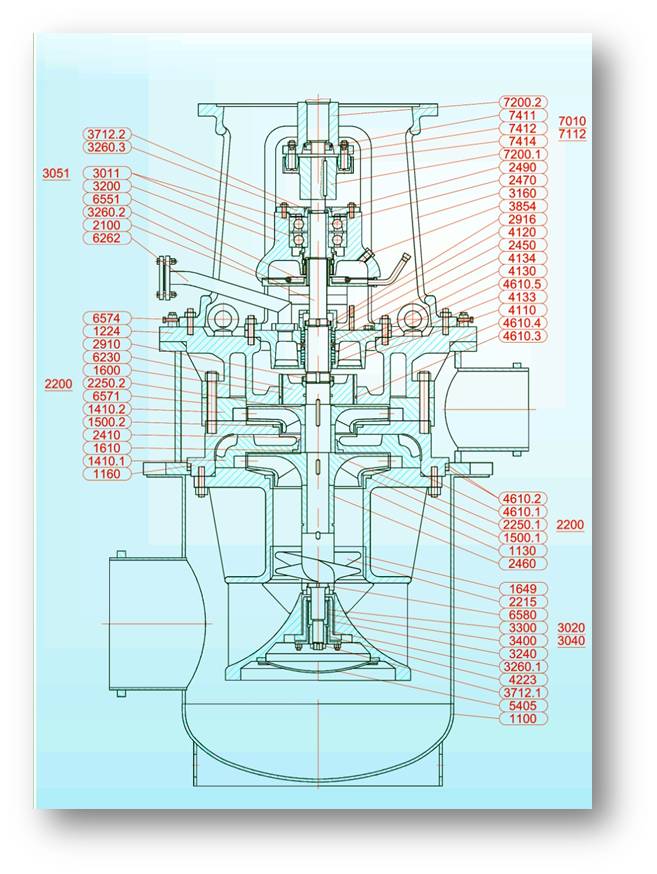

Typical sectional drawing of condensate pumps
